Artikel-Nr.
BT--T / BV--T

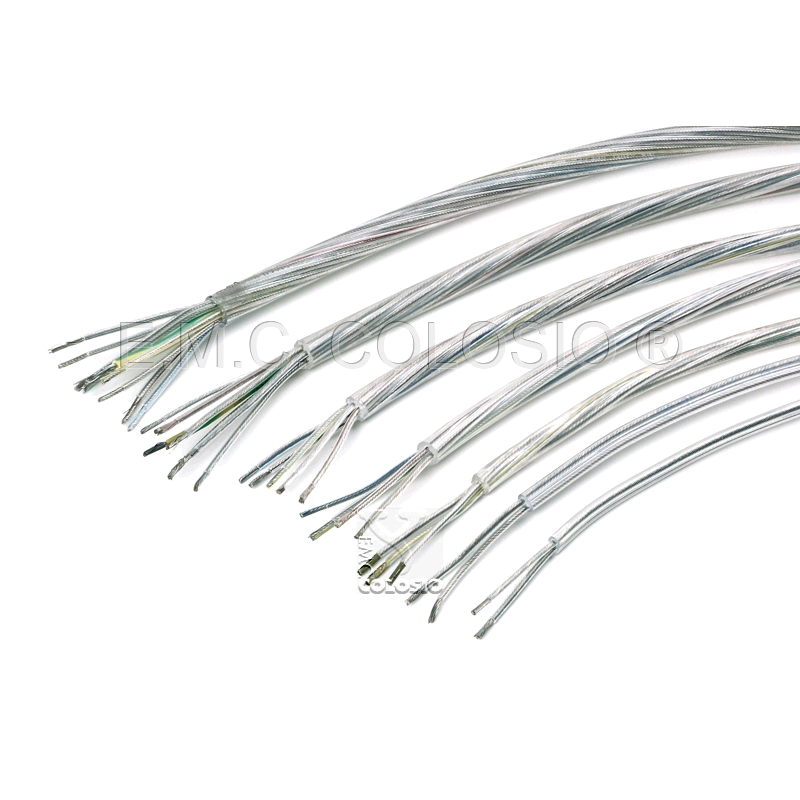

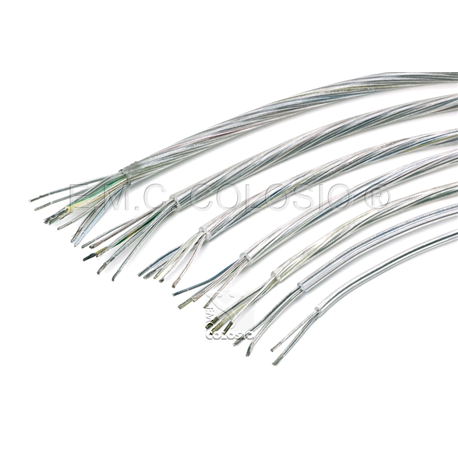

| Leitungsisolation: | FEP + PVC Transparent (Klar) mehrpolig 250V |
| Betriebstemperatur Mantel: | T90°C |
| Betriebstemparatur innere Leiter: | T180°C |
| Litzentyp: | Kupfer verzinnnt flexibel |
| Betriebsspannung: | 300/500V |
| Prüfzeichen innere Leitung: | IMQ |
| Artikel | Abschnitte / AWG: | Farben der Leiter | Durchmesser / Maße (mm): | ||
| BT20T | 2 x 0.50 mm² | tt | 4.2  | ::BT20T:: | |
| BT27T | 2 x 0.75 mm² | tt | 4.7 | ::BT27T:: | |
| BTD7T | 2 x 0.75 mm² | tg | 4.7 | ::BTD7T:: | |
| BT21T | 2 x 1.00 mm² | tt | 5.2 | ::BT21T:: | |
| BT25T | 2 x 1.50 mm² | tt | 5.9 | ::BT25T:: | |
| BT22T | 2 x 2.50 mm² | 6.9 | ::BT22T:: | ||
| BTP7T | 2 x 0.75 mm² | tt | 4.7 x 3.0 | ::BTP7T:: | |
| BV37T | 3 x 0.75 mm² | ttg | 5.1 | ::BV37T:: | |
| BVT7T | 3 x 0.75 mm² | ttb | 5.1 | ::BVT7T:: | |
| BV31T | 3 x 1.00 mm² | ttg | 5.3 | ::BV31T:: | |
| BV35T | 3 x 1.50 mm² | ttg | 6.1 | ::BV35T:: | |
| BV47T | 4 x 0.75 mm² | lmbg | 6.0 | ::BV47T:: | |
| BVQ7T | 4 x 0.75 mm² | lmbr | 6.0 | ::BVQ7T:: | |
| BVQ2T | 4 x 2.50 mm² | ttbb | 8.6 | ::BVQ2T:: | |
| BV57T | 5 x 0.75 mm² | lmbrg | 6.3 | ::BV57T:: | |
| BV55T | 5 x 1.50 mm² | lmbrg | 8.0 | ::BV55T:: | |
| BV77T | 7 x 0.75 mm² | lmbrhnG | 6.8 | ::BV77T:: | |
| BV75T | 7 x 1.50 mm² | lmbrhnG | 9.0 | ::BV75T:: | |
| BV97T | 9 x 0.75 mm² | lmnrebvhG | 7.8 | ::BV97T:: | |
| BV95T | 9 x 1.50 mm² | lmnrebvhG | 10.6 | ::BV95T:: |
Verfügbare Farben:
Farben der Leiter
t =
g = Transparent + yellow/green
b = Transparent + white
l = Transparent + blue
m = Transparent + brown
r = Transparent + red
h = Transparent + yellow
n = Transparent + black
G = Gelb-Grün
e = Transparent + grey
v = Transparent + green
