1 Way IN + 2 Ways OUT

2 Poles + Ground 1 Way IN + 2 Ways OUT Paguro 5663.3P

2 Poles + Ground 1 Way IN + 2 Ways OUT Paguro 5663.3P

Model

Paguro 5663.3P

Connector:2 Poles + Ground 1 Way IN + 2 Ways OUT
Connecting devices with IP protection grade:IP68
Rated voltage:450V
Rated current:25A
Working temperature:T -20°C + 85°C
Type of clamps for the cables connection:bush + screw clamps
Clamps connecting capacity:0.75 ÷ 2.50 mm²
Cables diameter:6.5 ÷ 12.0 mm
Protection grade:IP68
Body: PA66

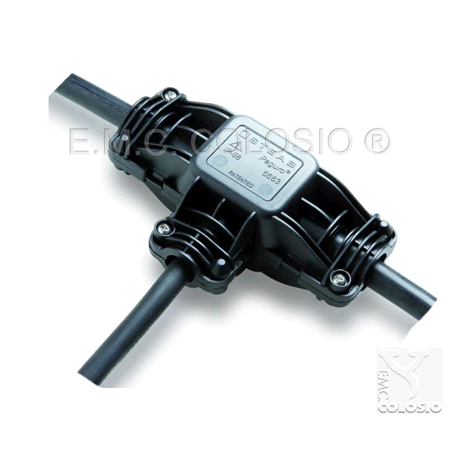

IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 2 POLES + GROUND 1 WAY IN 2 WAYS OUT (WITH GEL)
Product of the series Paguro of Steab
