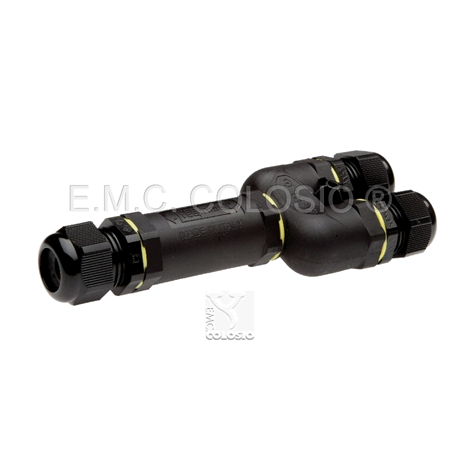

1 Way IN + 2 Ways OUT

4 Polig + Erde 1 Way IN + 2 Ways OUT M139MN--/5

Artikel-Nr. M139MN--/5

M139MN--/5

Verbinder:	4 Polig + Erde 1 Way IN + 2 Ways OUT
Nennspannung:	450V
Nennstrom:	16A
Betriebstemperatur:	T -40°C + 125°C
Klemmentyp für die Verbindung der Leitungen:	Schraubklemme
Kapazität der Klemmverbindung:	0.50 ÷ 4.00 mm²
Kabeldurchmesser:	8.0 ÷ 17.0 mm
&UUml;berspannungskatergorie:	II
Verschmutzungsgrad:	II
Schutzgrad:	IP68
Gebaut nach Normen:	EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335
Prüfzeichen:	ENEC 03
Körper:	PA66
IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 4 POLES + GROUND 1 WAY IN 1 WAY OUT (M139MNAA/5: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBA/5: VERSION WITH LINE IN GLAND FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT AND LINES OUT GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBB/5: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT)
REACH - SCIP Anmeldung:: 7792a36c-0519-45b0-8dfd-6bf309c5b14c
