Product

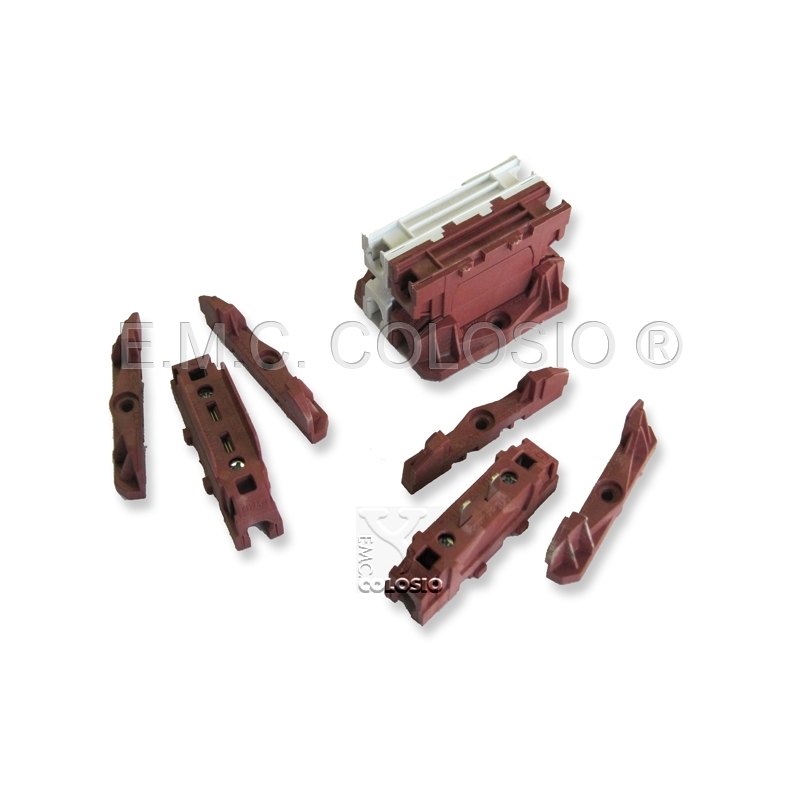

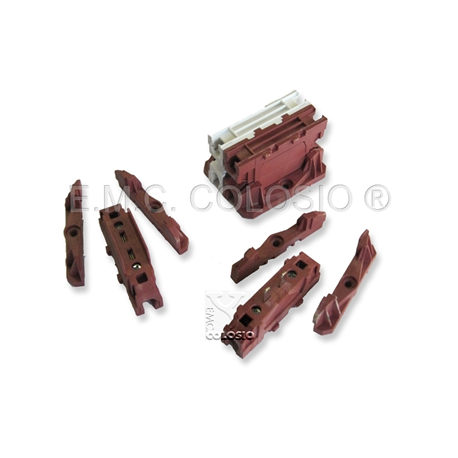

M26U-2
| Knife switche: | Knife switches 2 Poles |
| Rated voltage: | 400V (300V DC) |
| Rated current: | 20A (14A DC) |
| Working temperature: | T 120°C (T240°C M26UH-2) |
| Impulse voltage: | 5 kV |
| Insulation class: | Class II |
| Type of clamps for the cables connection: | bush + screw clamps |
| Clamps connecting capacity: | 0.75 ÷ 2.50 mm² (UL 18 ÷ 12 AWG) |
| Overvoltage category: | III |
| Pollution degree: | II |
| Protection grade: | IP20 |
| In conformity to the standards: | EN 60598 (UL 1059 - CSA C22.2 No.158-10) |
| Approval marks: | C.S.v. IMQ |
| UL - Working temperature: | T 120°C (T220°C M26UH-2) |
| UL - Rated voltage: | 300V |
| UL - Rated current: | 17A |
| UL - Approval marks: | cURus |
| Body: | PA66 |
