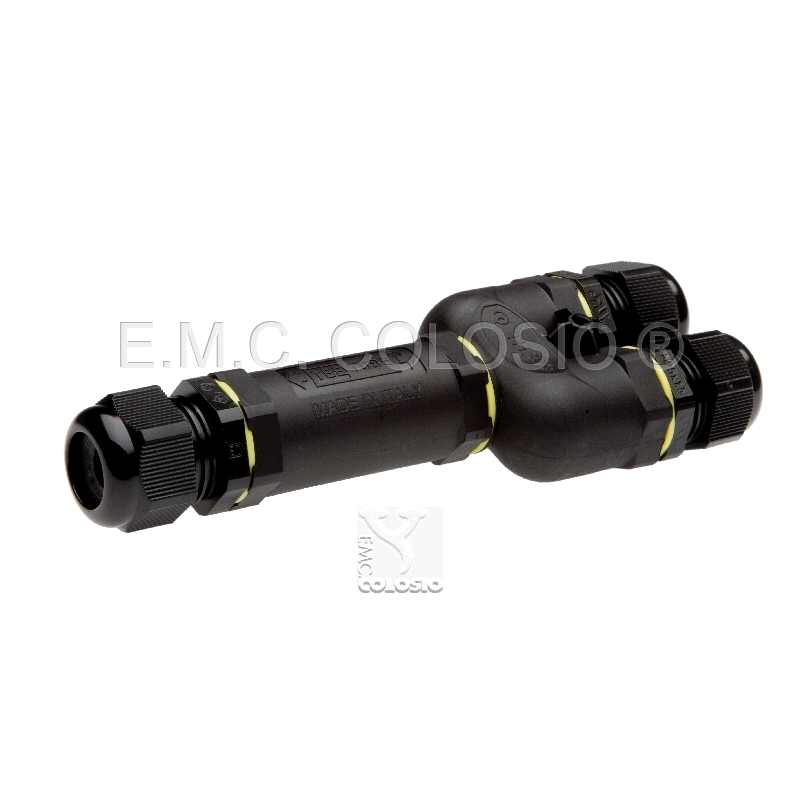

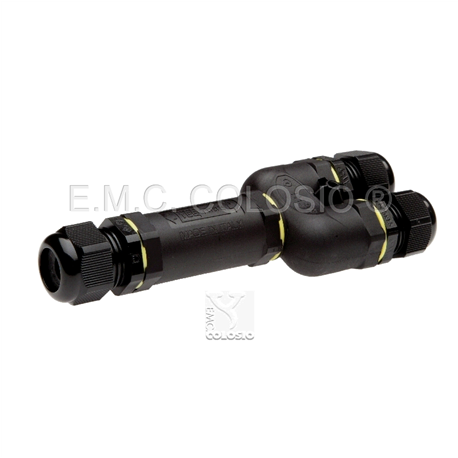

1 Way IN + 2 Ways OUT

3 Polig + aarde 1 Way IN + 2 Ways OUT M139MN--/4

Model M139MN--/4

M139MN--/4

Verbinding:	3 Polig + aarde 1 Way IN + 2 Ways OUT
Nominale spanning:	450V
Nominale stroom:	16A
Werkingstemperatuur:	T -40°C + 125°C
Types van klemmen voor de kabelverbinding:	schroefklemmen
Geschikt voor draadsectie:	0.50 ÷ 4.00 mm²
kabels diameter:	8.0 ÷ 17.0 mm
Overvoltage category:	II
Pollution degree:	II
Beschermingsgraad:	IP68
Conform de standaarden:	EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335
Certificaten:	ENEC 03
Behuizing:	PA66
IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 3 POLES + GROUND 1 WAY IN 1 WAY OUT (M139MNAA/4: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBA/4: VERSION WITH LINE IN GLAND FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT AND LINES OUT GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBB/4: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT)
REACH - SCIP registratie:: 7792a36c-0519-45b0-8dfd-6bf309c5b14c
