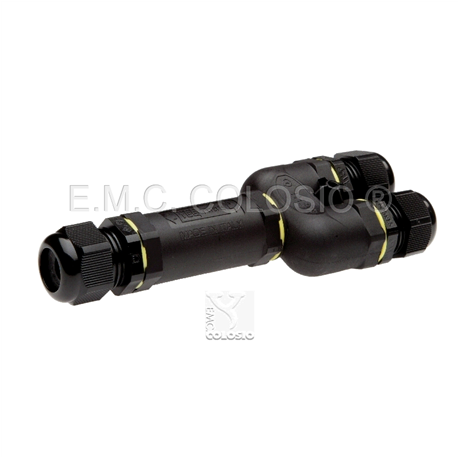

1 Way IN + 2 Ways OUT

4 kutuplu 1 Way IN + 2 Ways OUT M139MN--/Q

Model M139MN--/Q

M139MN--/Q

Konnektör:	4 kutuplu 1 Way IN + 2 Ways OUT
Anma voltajı:	450V
Anma gerilimi:	16A
Duy çalışma sıcaklığı:	T -40°C + 125°C
Kablo Bağlantı Tipi:	Vidalı Klemens
Klemens Çapı:	0.50 ÷ 4.00 mm²
Kablolar Çap:	8.0 ÷ 17.0 mm
Yüksek Gerilim Kategorisi:	II
Kirlilik Derecesi:	II
Koruma sınıfı:	IP68
Uygun standartlar:	EN 60998-1 / EN60998-2-1 / EN60529-1 / EN60335
Kalite Belgeleri:	ENEC 03
Gövde:	PA66
IP68 WATERTIGHT CLAMP CONNECTION DEVICE WITH 4 POLES 1 WAY IN 1 WAY OUT (M139MNAA/Q: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBA/Q: VERSION WITH LINE IN GLAND FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT AND LINES OUT GLANDS FOR CABLES WITH DIAMETER BETWEEN 7 AND 13.5 MM WITH 24 MM HEXAGONAL KEY NUT - M139MNBB/Q: VERSION WITH GLANDS FOR CABLES WITH DIAMETER BETWEEN 8 AND 17 MM WITH 29 MM HEXAGONAL KEY NUT)
REACH - SCIP kayıt:: 7792a36c-0519-45b0-8dfd-6bf309c5b14c
